CS 351 -Data Organization and Management ( Section: 02)

LectureNotes, Week 7

Prepared by: Ilginç Demir /Anil Öztuncer /Ugurcan Karayel

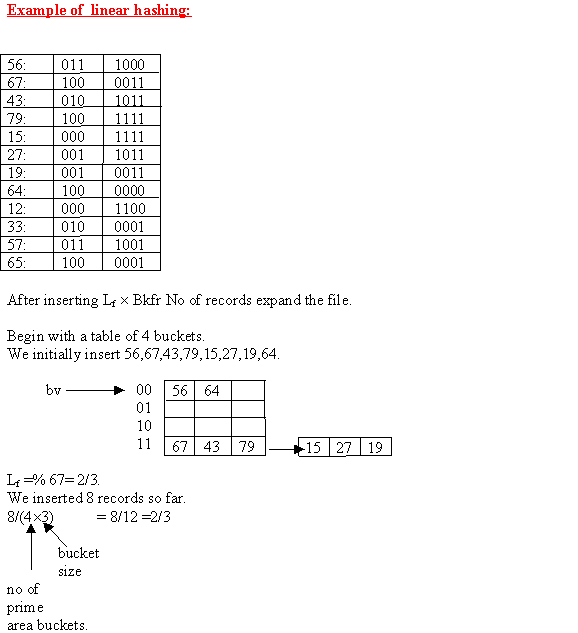

LINEAR HASHING

Extendible hashing and dynamic hashing require index structure.

However Linear Hashing requires no index structure and we can specify the load factor, as the file size changes we change the hash function.

In linear hashing, the last bits in the hash number are used for placing the records in the file.

Example: Begin with 8 buckets and use the last three bits.

hex	bin
34	100 010
17	010 001
5	000 101
28	011 100
25	011 001
50	110 010
55	110 111
8	001 000

000	8
001	17	25
010	34	50
011
100	28
101	5
110
111	55

Boundary value bv = 0

Bkfr = 3, use last k=3 bits.

2^k = tableSize < 2^k+1

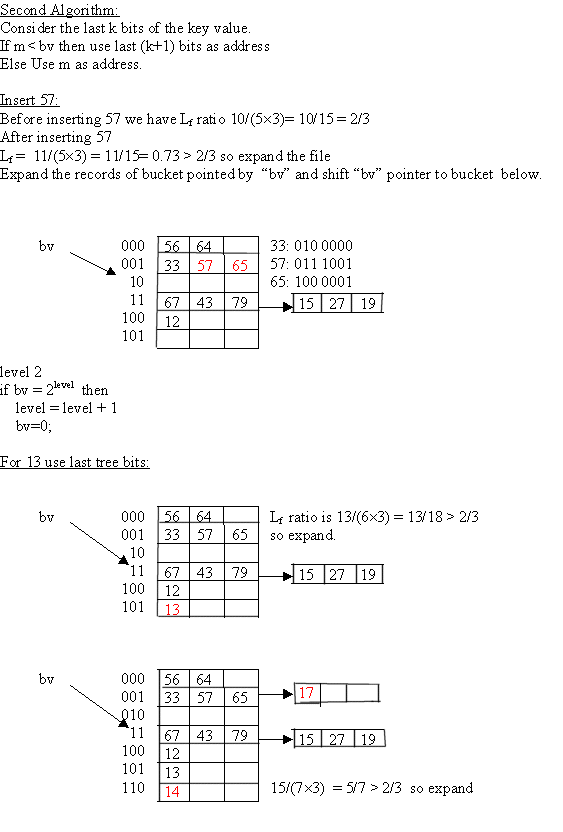

SEARCH ALGORITHM

Consider the last k bits of the key value, call it m.

if m < bv then we use last k+1 bits as address

else use m as address.

if necessary, follow overflow chains.

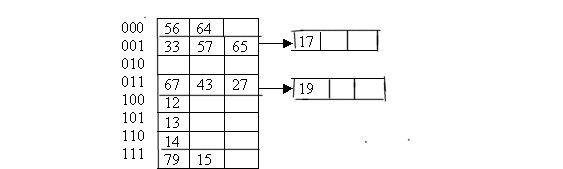

TABLE EXPANSION

000 bv=0
|	,,
|	,,
|	,,
|	,,
|	,,
111

0000
001 bv = 1	,,
|	,,
|	,,
|	,,
|	,,
111
1000

0000
0001	,,
| bv = 2	,,
|	,,
|	,,
|	,,
111
1000
1001

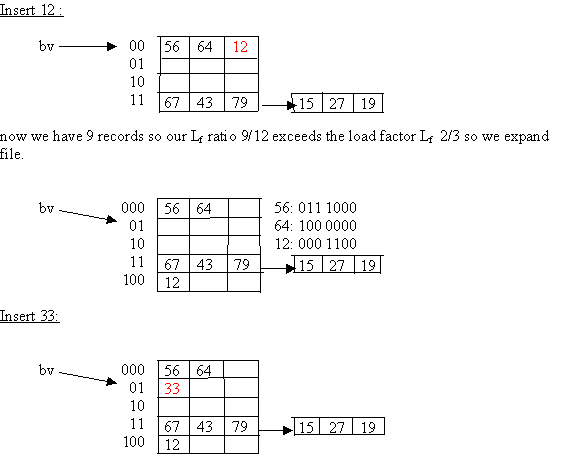

INSERTION

1. Establish the correct bucket.

(use the search algorithm for that purpose)

2. If bucket is not full than enter the record

Else link (another) overflow bucket and enter it there.

3. if Lf * Bkfr records have been added since the last expansion than

· Add a new bucket to the primary area

· Distribute the records in the boundary bucket between the new and

boundary buckets

Advance the bv value to the next bucket.

Index Sequential Access Method (ISAM)

Prime data area

Overflow area

- Cylinder overflow area (faster access, since there is no seek time)

- Independent overflow area (for many cylinders, slower since it involves additional seek time.)

Index area

Provides access to records in ascending order.

Cylinder

Track Index

Track Index: Cylinder index: Master index (for large files).

IBM file structure no longer available, replaced by VSAM (Virtual Storage Access Method [B⁺ Tree Structure]).

Example:

Cylinder 1

1	TI	TI	10	15
2	20	25	30	35
3	40	45	50	55
4

{Overflow track}

Cylinder 2

1	TI	TI	110	115
2	120	125	130	135
3	140	145	150	155
4

{Overflow track}

Track Index for Cylinder 1

1	15	-	-
2	35	-	-
3	55	-	-

There are the highest key values for prime area and overflow area in the first and the second columns respectively.

The third column is for the address of the overflow record.

Track Index for Cylinder 2

1	115	-	-
2	135	-	-
3	155	-	-

Cylinder Index for both of the cylinders

1	55
2	155

Delete 25, Add 22, Add 42, Add 60, Delete 30, Add 24, Add 47, Add 160.

Delete 25

Cylinder 1

1	TI	TI	10	15
2	20	25	30	35
3	40	45	50	55
4

25 marked as deleted.

Add 22

Cylinder 1

1	TI	TI	10	15
2	20	22	25	30
3	40	45	50	55
4	35*

*: There is a follower of this overflow bucket.

Track Index for Cylinder 1

1	15	-	-
2	30	35	4,1
3	55	-	-

Add 42

Cylinder 1

1	TI	TI	10	15
2	20	22	25	30
3	40	42	45	50
4	35	55

Track Index for Cylinder 1

1	15	-	-
2	30	35	4,1
3	50	55	4,2

Add 60

Cylinder 2

1	TI	TI	60	110
2	120	125	130	135
3	140	145	150	155
4	115

Track Index for Cylinder 2

1	110	115	4,1
2	135	-	-
3	155	-	-

Delete 30

Cylinder 1

1	TI	TI	10	15
2	20	22	25	30
3	40	42	45	50
4	35	55

30 marked as deleted.

No change in the track index.

Add 24

Cylinder 1

1	TI	TI	10	15
2	20	22	24	25
3	40	42	45	50
4	35	55

30 don’t goes to overflow area as long as it was marked as deleted.

Track Index for Cylinder 1

1	15	-	-
2	25	35	4,1
3	50	55	4,2

Add 47

Cylinder 1

1	TI	TI	10	15
2	20	22	24	25
3	40	42	45	47
4	35	55	50

Track Index for Cylinder 1

1	15	-	-
2	25	35	4,1
3	47	55	4,3^*

*: The third column points to the record with the smallest key value.

As long as, the smallest value is 50 in the overflow area, it point outs the address of 50 (4,3).

Add 160

Cylinder 2

1	TI	TI	60	110
2	120	125	130	135
3	140	145	150	155
4	115	160

160 is bigger than the biggest value of Cylinder2. So it is placed in the overflow area.

Track Index for Cylinder 2

1	110	115	4,1
2	135	-	-
3	155	160	4,2

Consider transaction processing:

ADDITION

DELETION

MODIFICATION

Indexed File Update:

Update File

Report

File

Sequential File

open i-o master file apply_trans:

input trans_file

output report_file M_K = T_K

perform perform read_master_file

apply_trans

case of trans_flag

until

trans_eof = “true” A: perform addition

close B: perform deletion

files

C: perform modification

stop

modification end case

perform read_trans_file

addition:

if file_status not= 0 //record does not exists in the file

then

master_record = trans_record

write master_record

else

error
